Product Features

This product is designed for automatic guided / pure electric passenger / electric forklift applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V120A power applications. The machine adopts the controller specially developed for AGV car application demand, realize the function of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.

The system has the following features:

●DC output 24V60A and 48V50A modular power supply, support current expansion upgrade.

●hot-swap mode, N + 1 redundant structure protection

●ultra-high power density, compact size

●Standard efficiency up to 92%

●variety use mode (independent charge, interactive charge, maintenance charge)

●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)

●High protection safety rating (IP54), designed for industrial applications

This product is designed for automatic guided vehicles / electric forklifts and other applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V240A / 48V200A power applications. The machine adopts the controller specially designed for the AGV trolley application for the automatic production line. It realizes the functions of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.

The system has the following features:

●Ultra-high power, 240A @ 24V / 200A @ 48V

●hot-swap mode, N + 1 redundant structure protection

●ultra-high power density, compact size

●support current expansion upgrade

●Standard efficiency up to 92%

●Variety use mode (fast charge, interactive charge, balanced charge, maintenance charge)

●provide IO port for system interlock protection

●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)

●High protection safety rating (IP54), designed for industrial applications

Product specifications

Voltage level		24Vsystem			48Vsystem
model		LPC120-24	LPC180-24	LPC240-24	LPC100-48	LPC150-48	LPC200-48
power		3600W	5400W	7200W	6000W	9000W	12000W
recharging current		5~120A	5~180A	5~240A	5~100A	5~150A	5~200A
Input voltage		220VAC±10%，50/60Hz（Optional 380VAC±10%）
Power factor		≥0.99@220Vac/50A, ≥0.98@220Vac/25A（Single module）
Dynamic adjustment rate		±5.0% for 10-90% or 90-10% Load change, Adjust the time < 200us
Load Regulation		±0.5% from 10% to 100% load
Charging voltage		16～30VDC			43～58VDC
Steady flow accuracy		≦±0.5%
Noise voltage		< 200 mV Peak peak, 30 MHz bandwidth, < 2 mV rms Telephone weight
Regulation accuracy		≦±0.5%
Time accuracy		≦±10S/24h
Charging parameter settings	Voltage	0.01V
	Current	0.1A
	time	1S
Dimensions		According to power
weight		According to power
Operating temperature		0℃~45℃
Storage temperatur		-10℃~40℃
Working humidity		Relative humidity 10%~80%，No condensation
protection		Overcurrent, overvoltage, overtemperature, reverse, missing, short circuit, cut off
communication		CAN/MODBUS/ PROFIBUS DP Optional
Interaction DIO		Dry contact DIO, Battery contact informs, standby, charging, charging is complete, faulty
safety standard		IEC 60950-1
Electromagnetic compatibility standards		EN 61000-6
environment		ETSI EN 300 019-2 RoHS compliant
Insulation and pressure		3.0 KVAC –Input pair output 1.5 KVAC –Input to ground 0.5 KVDC –Output to ground
Average trouble-free working hours		5 Million hours
noise		50DB

LPC120-24 charging station dimensions:

LPC120-24 above specifications charging station Dimensions:

The charging station uses floor-mounted foot installation mode.

點贊 0舉報收藏 0

更多>本企業其它產品

EV48-60霍克鋰電池AGV

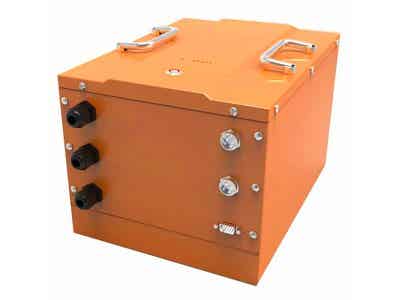

霍克鋰電池組AGV HAWK

HAWKER鋰電池24V200AH

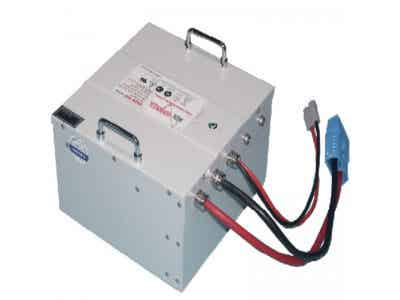

霍克hawker鋰電池組EV

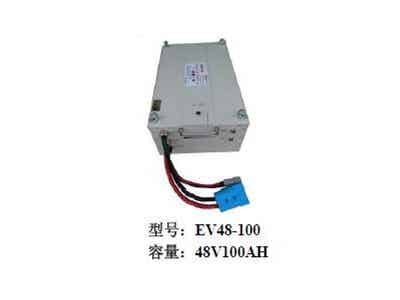

霍克鋰電池EV48-100AG

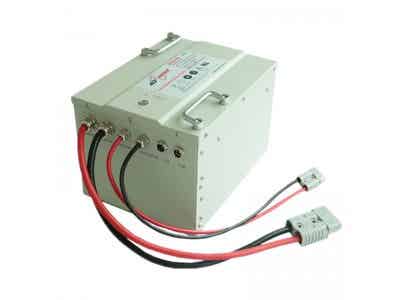

霍克電池EV24-60磷酸
